Maintenance workflow

Belt Centering

Step 1. Center the belt, run the Roll test, and balance the front roller.

Open interactive guide
Bed mesh interface used during maintenance validation

Belt Centering

Center the belt and balance front tension

Keep all 4 corners between 20 mm and 40 mm before hardware calibration.

  1. Open safe access

    Remove access parts only if needed. Bring a ruler or caliper, a pencil, and an IPA cloth.

  2. Measure before touching the hardware

    Take all 4 readings before you adjust anything.

  3. Loosen the front tension

    Loosen both front screws about 4 turns. If the belt stays tight, add 1 or 2 more turns.

  4. Slide the belt in the direction shown by the calculator

    Slide the belt left or right while rolling it by hand. Use a pencil under the edge if it sticks.

  5. Run the Roll test and rebalance the front roller

    Re-tighten both front screws evenly, run the Roll test, and check for drift or scraping.

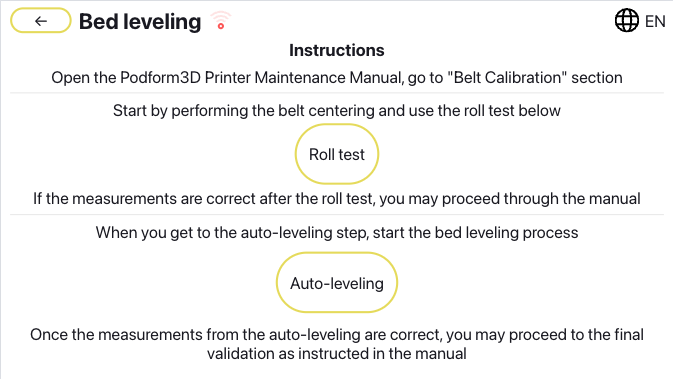

    Bed leveling screen with Roll test and Auto-leveling controls
    Use the Roll test between centering corrections so you do not assume the path is stable when it is not.

  6. Re-measure and repeat

    Update the calculator after each pass. Keep all 4 values between 20 mm and 40 mm, with no more than 10 mm left-right difference at the front or rear.

    Video

Before you finish

  • All 4 corners are inside 30 mm +/- 10 mm.
  • The front left-right difference is at or below 10 mm.
  • The rear left-right difference is at or below 10 mm.
  • Front roller tension feels equal left and right after the Roll test.
